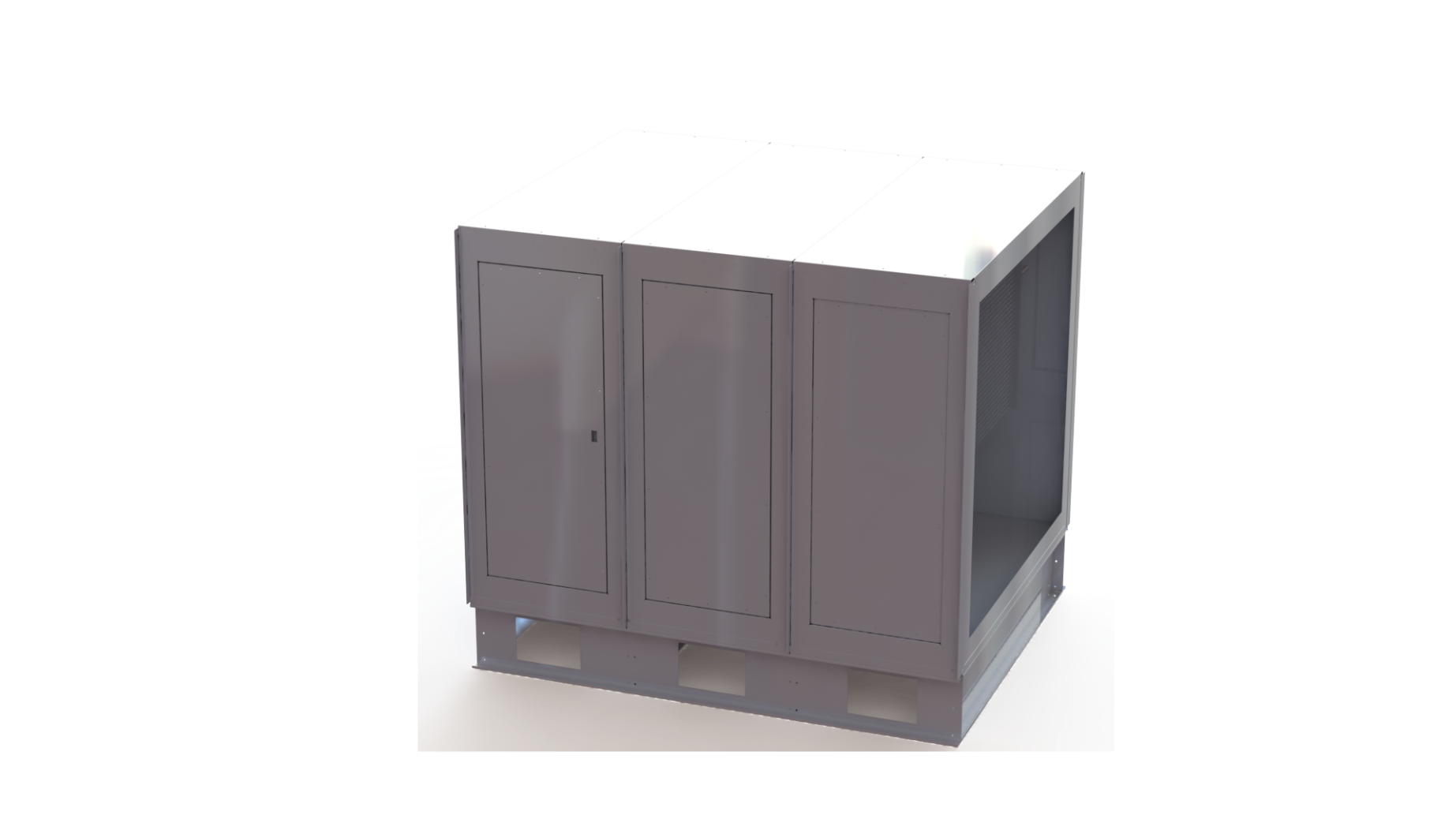

ECCH320 Self-Contained Fully Ducted Air Handler
- The air handler coil capacity is selected and designed to match the existing direct fired air handler when the unit is supplied with 150F or less water temperature from a closed loop boiler system (supplied separately).
- High efficiency ECM backward curved motorized fans designed to deliver 9000 cfm at 0.5” w.c. and can operate with external static pressure up to 1.5” w.c.
- Allen Bradley electronic control manages the humidity and heating. Electrical box for housing the main control is internal to air handler.
- Galvanized steel outer cabinet in G90 grade for long life even in occasionally damp environments.
All interior surfaces are stainless steel for long life at high humidity / wetted conditions. - C channel base is supplied to rigidly tie the three sections of the air handler together, mount the air handler off the floor and provide the elevation needed to connect and trap the drains for each of the three sections.
Industrial Air Handler Submittal-20250721
